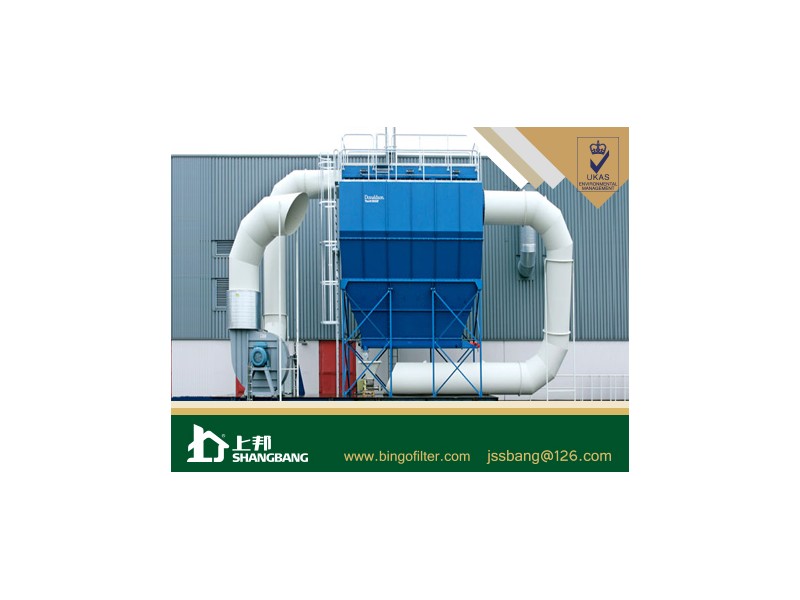

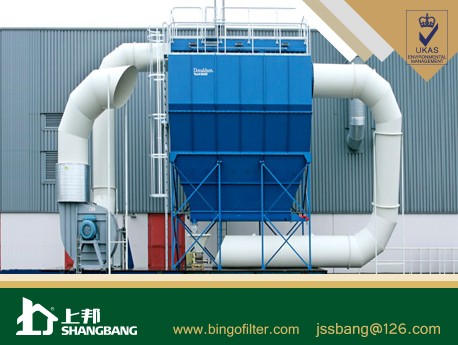

Dust Baghouse Collector

Dust Baghouse Collector (also called pulse jet baghouse, pulsejet dust collectors, etc...) are self contained, fully automated where needed. We also supply and install ducting, access platforms, ventilation and instrumentation. Baghouses are engineered for dusts of 3 microns and larger

More details

Detail

Manufacture Process

Filter Application

Packing & Delivery

Technical Data

Surfance Treatment

Features & Benefits

How to Order?

We offer a full range of  dust collector designs and media choices to solve the toughest pollution control problems involving high temperatures, pressures and corrosives. Capacities to 200,000+ CFM.

 Rugged construction is standard.

All-welded fabrication for operation to ±20" WG (rectangular models); 11 gauge, 12 vertical wire cages are standard. Top and side bag models are available.




Dust Baghouse Collector are engineered for dusts of 3 microns and larger, in the following applications:

  • Woodworking
  • Cement production
  • Powder processing
  • Steel melting
  • Material handling
  • Primary metals, including steel-making
  • Metals fabrication: grinding, sawing, sanding, polishing
  • Papermaking
  • Mixing and blending options
  • Mining
  • Foundries
  • Glass Plants
  • Battery Plants
  • Universities

Our service

1. Our engineers can work separately according to the requirements of  design for clients of the equipment. and send a customer confirmation to help customers to save costs.

2. During the manufacture of the equipment, we photograph product production progress, and sent to the customer to track the progress.

3. The goods hair go, we will send the original documents for the customer (such as packing list, bill, CO, Form E, Form A, Form F, Form M, B/L etc.)

 4. We can provide customers with free English foundation drawing, installation drawings, manuals, maintenance manuals and parts drawings.

5. We can send our engineers to installation and debugging overseas, and free training of operators and maintenance workers.

6. We have a set of After-sales service system, A ID will be sent to each customer, they can log in this system that view all information to buy equipment and parts by it. We provide 24-hour online consultation.

Technique parameter for Dust Baghouse Collector



Model



SB154-2X11

SB154-2X12

SB154-2X13

SB154-2X14

SB154-2X15

Treatment wind capacity (m3/h)

488000

732000

532000

798000

577000

865000

621000

931000

665000

1000000

Filtering area (square meters)

10208

12064

12064

12992

13920

Filter bag quantity (pcs)

diameter 130X6000mm

3388

4004

4004

4312

4620

Filtration velocity (m/min)

0.8-1.2

Resistance (Pa)

less than 1500

Entrance dust content (g/N m3 )

less than 1000

Exit emission concentration (mg/ N m3 )

less than 50 (filter bags made in China);less than 30(filter bags made in foreign countries)

Negative pressure sustained by dust collector (Pa)

8000

Dust cleaning pressure

Pressure (Mpa)

0.2-0.6 ( diameter 3 inch Flood Pulse Valve used)

Compressed air

Gas consumption (m3/min)

5.0

5.0

5.5

6.0

6.0

Power consumption (KW)

30

30

30

30

30

Equipment weight (T)

311.7

340.6

369.2

398.5

424.7



Model

Bag quantty

Filtering area

Width

Air volume m3/h

SB601

72

108M2

1150mm

6500-13000

SB610

108

162M2

1630mm

9700-19500

SB602

144

216M2

2198mm

13000-26000

SB611

180

270M2

2678mm

16500-32500

SB620

216

324M2

3158mm

19500-39000

SB612

252

378M2

3726mm

22700-45400

SB621

288

432M2

4206mm

26000-52000

SB630

324

486M2

4686mm

30000-60000

SB622

360

540M2

5254mm

33000-66000

SB631

396

594M2

5734mm

36000-72000

SB640

432

648M2

6214mm

39000

Feature for Dust Baghouse Collector

1. It has modern design, it uses lower gas inlet structure, the rough high temperature granules directly drop to the dust hopper and effectively protects the filter bag.

2. It uses long filter bags and it has smaller floor area in case of equal processing capacity, therefore it is more convenient for reconstruction of old factories.

3. It uses separate chamber offfline dust clearingwith high efficiency and few secondary flour dust attachment, in the meantime, it can effectively reduce the equipment energy consumption, the fatigue level of filter bag and pulse valve is correspondingly reduced and the service life of filter bag and vane is prolonged by several times and equipement operation cost is remarkably reduced.

4. The overhaul and bag replacement can be carried out for separate chambersunder the condition that system blower and system run normally.

5. The filter bag inlet used spring tension structure, it is convenient to disassemble & assemble and it has good tightness.

6. The case uses airtightness designand it carries out leak detecting with oil and reduces air leak to the maximum extent.

7. The whole set of equipment is controlled by PLCto realize automatic dust cleaning, dust removal, automatic temperature control and over temperature alarm.

According to your requirements,the most suitable machines will be designed for your workpieces please indicate the following details.

1.what kind of workpiece will you clean ?

2.The workpiece size,length ,width and height of maximum workpiece?

3.How many workpiecs do you want to clean per day ?

Based on this question,the detailed technical proposals will be sent to you for reference.
