New Liquid micron Polyester filter bag View larger

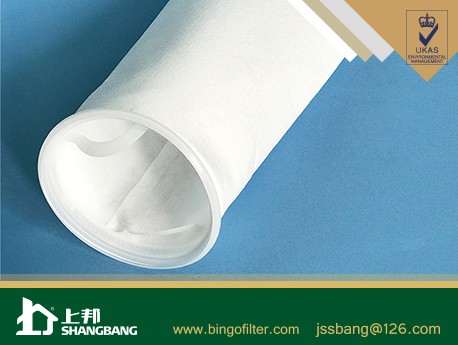

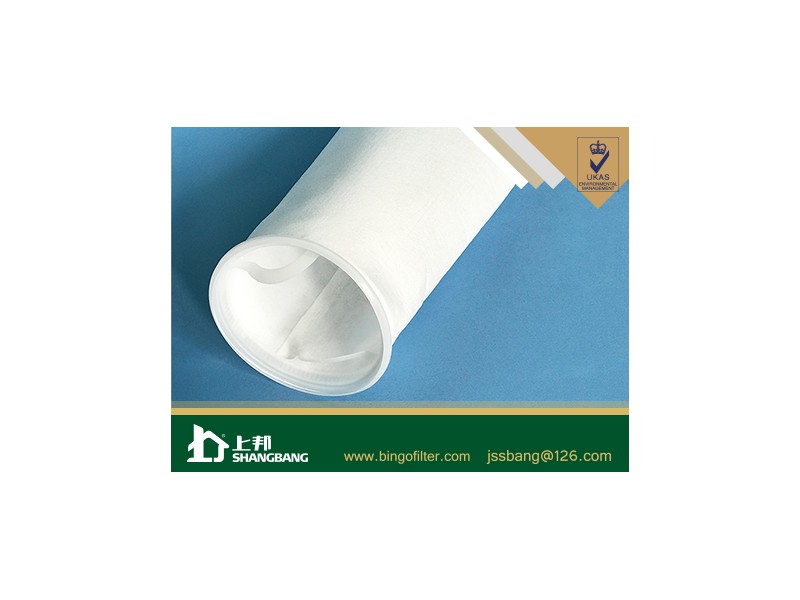

Liquid micron Polyester filter bag

Boing liquid micron Polyester filter bag is a main stay in many industries. It's one of the best filter medias to filter micro impurity liquid, remove micron particles, purify liquid and protect the machines.

More details

Detail

Filter Application

Technical Data

Surfance Treatment

Features & Benefits

BOING FILTER has full micron ranges of liquid polyester filter bags. We are a leading supplier in China for all types of filter bags for both dust and liquid filtration. For liquid micron Polyester filter bags, we have big quantity in stock. Prompt delivery is available for us!

Liquid micron Polyester filter bag is widely used in:

chemical&medical plants,

paper industry,

automobile industry,

petrochemical&automobile industry,

mechanical&metal processing,

food processing&beverage,

painting&coating,

electronics and other industries;

Moreover, liquid micron Polyester filter bag is also widely used in our daily life, like pool, fish tank etc.


liquid micron Polyester filter bag specifications

Bag constructionFilter MediaMicron(um)Ring Marerial
Sewn or weldedPolyester(PE)

1,5,10,25,50,80,100,125,150,200,

250,300,400,600,800,1200,2500

Zinc-pleated,

SS304, PE, PP

 SizeMax.Flow(m3)FilterArea(m2) Volume(L) Diameter Length
#01200.2587(180mm)17(450mm)
#02400.5177(180mm)32(810mm)
#0360.091.34(108mm)9(230mm
#04120.162.54(108mm)15(380mm)
 Chemical specification of different filter medias
 Filter MediaTemp(°C)StrongAlkAlkaliWeakaliOilAromaticsGlycolEtherOrganicSolvent Microorganism in water
PE150-170VVVVVV
PO/PP90-110VVVVVV
NM150-170Vvv
PTFE250-300VVVVVv

Liquid micron Polyester filter bag advantages:

1. Strong alkali resistance, temperature resistance of 130 degrees;

2. Good resistance to deformation and wear resistance;

3. Boing liquid micron Polyester filter bag is completely welded instead of sewn. This eliminates bypass through needle holes.

4. In addition to being bypass-proof, Boing liquid filter bags are also extremely strong and can handle a wide variety of applications. These filter bags use the trademark Boing seal ring at the top for a seal that responds to pressure and is chemical resistant.
