> >Anti-static Polyester Filter Bag
New Antistatic Filter Bag View larger

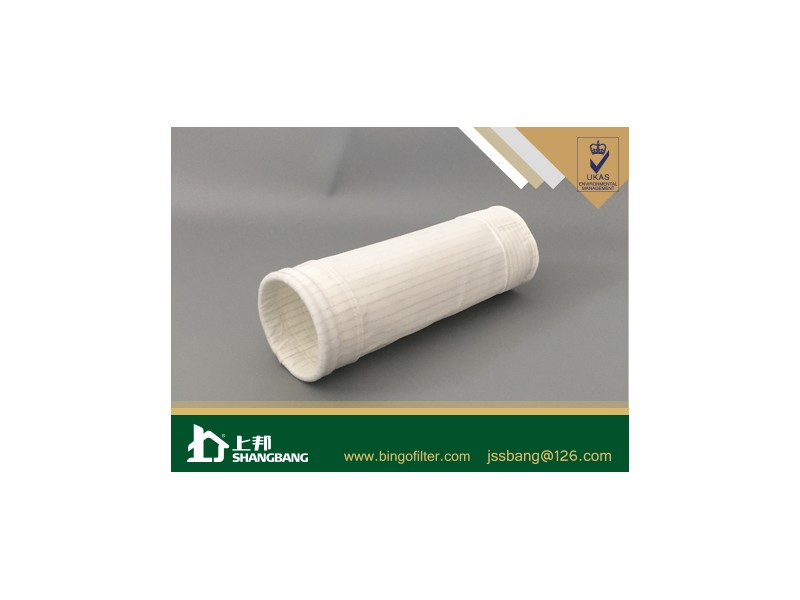

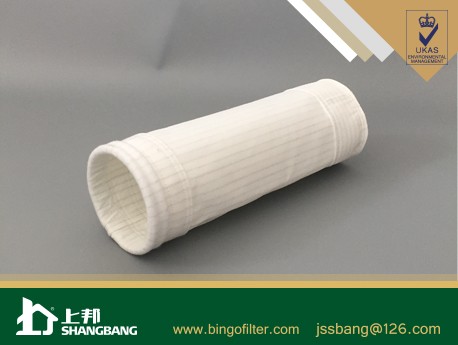

Anti-static Polyester Filter Bag

Anti-static Polyester Filter bag is widely used in flour, chemical and coal industries. Shangbang provide the filter bags with excellent performance of anti-static function. We can offer blend type , line type, matrix type for your choices.

Manufacture Process

Filter Application

Packing & Delivery

Technical Data

Features & Benefits

How to Order?

  • Our imported high tech fully automatic production line, which guaranteed production efficiency, felt quality and lowered product cost for filter bags

APPLICATIONS

  •  Chemicals Processing: Dryer baghouses, bin vents, and nuisance dust collectors in the catalyst, pigment, and plastic industries.
  •  Minerals Processing: Coal mill collectors.
  •  Metals Processing: Process venting and material handling dust collectors for pulverized coal.
  •  Power Generation and Incineration: Coal handling collectors and coal milling baghouses.

 non-woven-polyester-felt-filter-bag-pe-needle-punched-felt-filter-bag

Packing&Delivery&Payment

  1. Packing can be customized, normally we pack by polybag

      2.  ETD: 10-15 days after receiving your deposit;

      3. Payment terms: 30% deposit, balance against copy of documents;

      4. Payment can be made by L/C,T/T;

Payment

Order Amount(USD)

100%TT

<5000

50% Deposit the balance 50% will be against the copy of B/L

5000-10000

30% Deposit the balance 70%will be against the copy of B/L

>10000

      5. MOQ: 500pcs

      6. Transportation: We can recommend the most economic way of logistics, including maritime, land, air and other ways,     designated forwarder also accepted.

non-woven-polyester-felt-filter-bag-pe-needle-punched-felt-filter-bag3Technical Data of Antistatic Filter Bag

LAMINATE TECHNICAL DATA
Weight:300 -600g/m2 ±10%
Fiber Content:Staple 1 – Polyethylene Terephthalate
Staple 2 – Carbon-Filled Poly-Acrylonitrile copolymer
Scrim – Polyester Multifilament
Felt Construction:Supported Needlefelt
Continuous Operating Temperature:135°C (275°F)
Maximum Surge Temperature:149°C (300°F)
Acid Resistance:Fair
Alkali Resistance:Fair
Breaking Strength
Warp:1100 N/5 cm
Fill:1500 N/5 cm
Mullen Burst:4481 kPa (650 psi)
Thickness:1.2-2.0 mm
Static Decay Time:0.01 seconds (NFPA 99)
Air permeability(L/m2.s)200-300
Tensile elongation(%)warp≤35
weft≤60
Heat shrinkage(%)warp≤1.5
weft≤1.0

Pulse-Type Filter Bags

1. Sewn-in Circular Disc Base
2. Sewn-in Circular Disc Base with Bumper Cuff Reinforcement
3. Snap Band Top to Fit
4. Flange Top with Wire Ring
5. Plain Open Top
6. Open Top with Cuff and Cord

Features of Anti-Static Filter Bag

  •   Shangbang high durability membrane technology provides an excellent combination of filtration efficiency, airflow, and durability, filtration up to 99.5%
  •   Polyester fibers provide good all-around chemical resis-tance, especially in applications operated below 79°C(175°F)
  •  Special multifilament scrim design provides excellent dimensional stability and resistance to mechanical damage over the life of the filter.
  •  Stable working time: up to more than 3000 hours. Could be used cyclically.

non-woven-polyester-felt-filter-bag-pe-needle-punched-felt-filter-bag1224

How to business with us?

1. What you need to do?

You just need to tell us your all your working conditions in through details:

  • Size, material you want;
  • The former filters you use;
  • Your working conditions;

All the next jobs will be done by us:

2. What we offer?

  • Quick response
  • Quick delivery& Competitive price& stable fine quality
  •  Professional technical and commercial suggestions provided by experienced staff.
  • Custom-made design
  • Free samples is accepted if you write to us.
  • The filtration accuracy and efficiency you want to achieve;
  • Meet clients demand for controlling dust emission
  • Meet clients’ expectation of long working life
  • Meet requirement for high cost performance


We are passionate about what we do and we do things right. Contact us, let us help you choose the most economical filter felt for your application.
