New Woven Fiberglass filter bag View larger

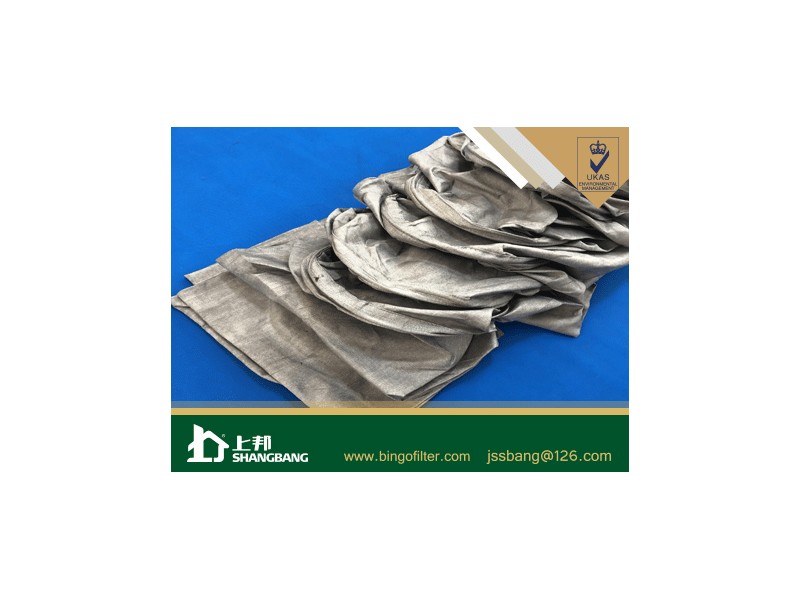

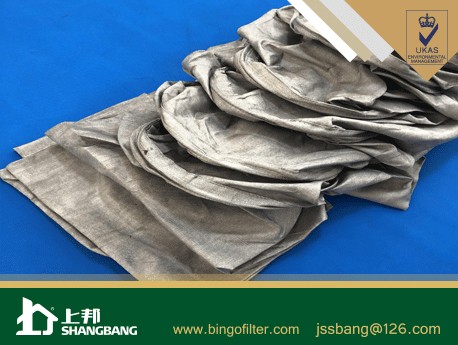

Glass fiber filter bag

Glass fiber filter bag is widely used in steel & metallurgy & alloy industry. Glass fiber filter bag can reach a maxxium temperature of 260℃ in both reverse pulse jet bag filters or pulse jet dust collectors. Our glass fiber filter bag can work for 3 years without replacement.

More details

Detail

Manufacture Process

Filter Application

Technical Data

Surfance Treatment

How to Order?

Glass fiber filter bag we made but not just these

Dust Collector Bags

Heat-resistant Filter Bags

PET (Polyester) Filter Bag

Aramid(Nomex) Filter Bag

PP (Polypropylene) Filter Bag

PPS Filter Bag

Acrylic Filter Bag

P84 filter bag

Anti-static Filter Bag

PTFE Filter Bag

Anti-spark Filter Bag

Fiberglass Filter Bag

 Glass fiber filter bag Shape:

1. the Glass fiber filter bag can be normal shape, with snap ring and round bottom; most sizes like 160*6000, 130*3000, with SGT fiberlass fabric

2. big Glass fiber filter bag, with two open ends; most sizes like 300*10000mm, with 6 pcs steel rings or without

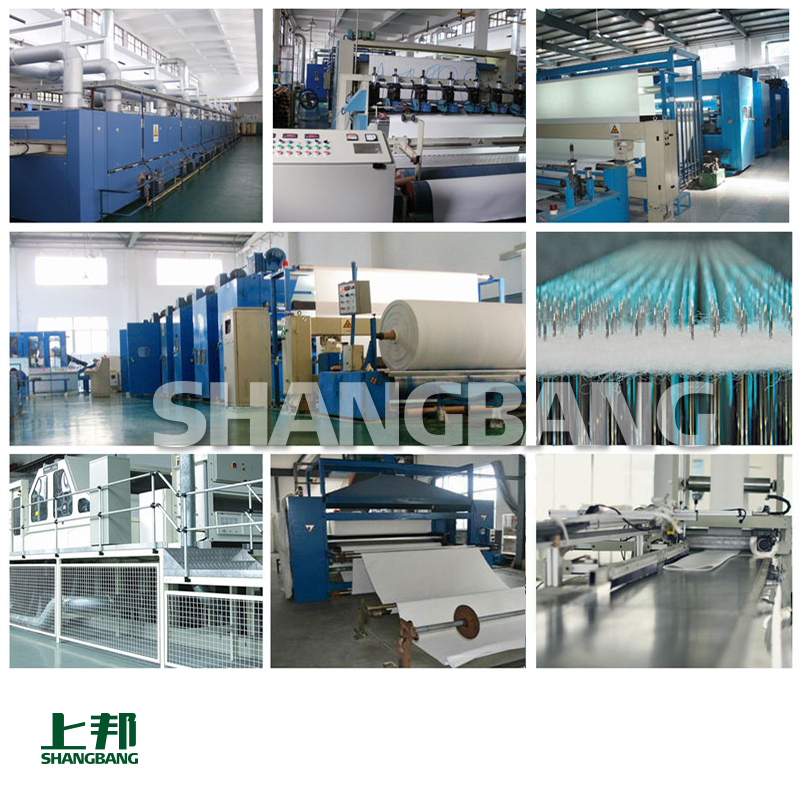

  • Our imported high tech fully automatic production line, which guaranteed glass fiber filter bags production efficiency, fiberglass fabric quality and lowered product
  • We can also meet clients requirments for different uint weight, from 450gsm to 750gsm, with different post treatment
  • cost

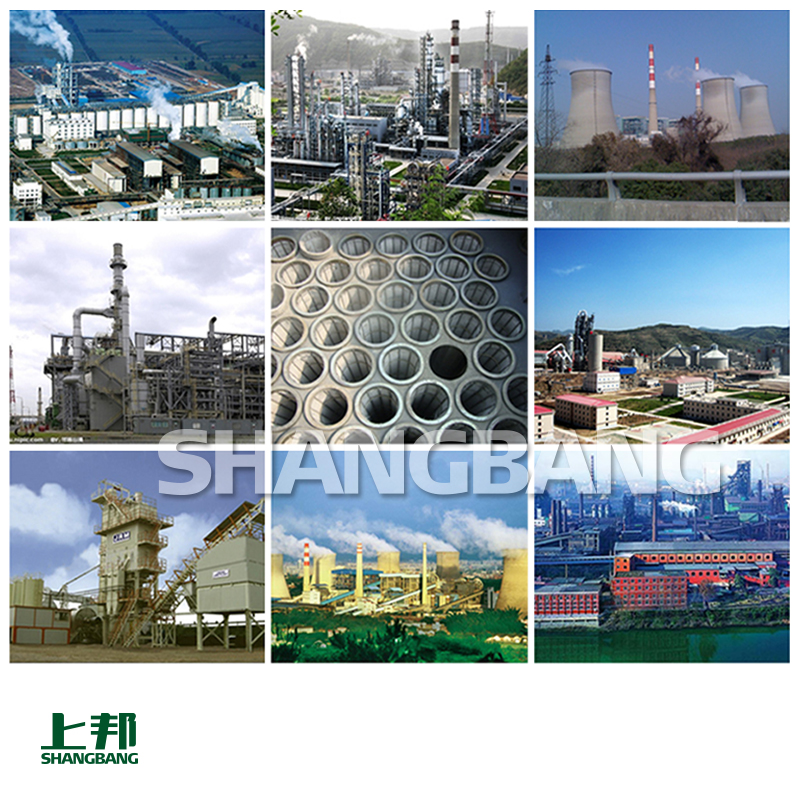

Glass fiber filter bag applications

  •  Minerals Processing: Dryer baghouses in the gypsum industry and clinker cooler baghouses.
  •  Metals Processing: High temperature process collectors for lead oxide and electric arc furnace baghouses in the steel industry
  • Alloy factory

Glass fiber filter bag parameter

Weight:500-750 g/m2
Fiber Content:100% glass fiber
Felt Construction:glass fiber
Continuous Operating Temperature:260°C
Maximum Surge Temperature:280°C
Acid Resistance:Good
Alkali Resistance:Good
Breaking Strength
Warp:2000 N/5 cm
Fill:2000 N/5 cm
Mullen Burst:4653 kPa (675 psi)
Thickness:0.8
Elongation at 50 lb
Warp:2.00%
Fill:5.50%
Flame-Resistance Testing ASTMD 6413-08:
After Flame0 seconds
After Glow35.1 seconds
Char Length1.1 inches
Working lifetime8000 hours and more

Glass fiber filter bag surface treatment

1. PTFE membrane/laminated;

2. PTFE impregating;

3. SGT(Silicon and graphite treatment)

4. Acid-Resistant Treatment

5. Alkali-Resistant Treatment

How to business with us?

1. What you need to do?

You just need to tell us your all your working conditions in through details:

  • Size, material you want;
  • The former filters you use;
  • Your working conditions;

All the next jobs will be done by us:

2. What we offer?

  • Quick response
  • Quick delivery& Competitive price& stable fine quality
  •  Professional technical and commercial suggestions provided by experienced staff.
  • Custom-made design
  • Free samples is accepted if you write to us.
  • The filtration accuracy and efficiency you want to achieve;
  • Meet clients demand for controlling dust emission
  • Meet clients’ expectation of long working life
  • Meet requirement for high cost performance

We are passionate about what we do and we do things right. Contact us!
